Multi-Function Uncooled Infrared Telescope
$4,950.00

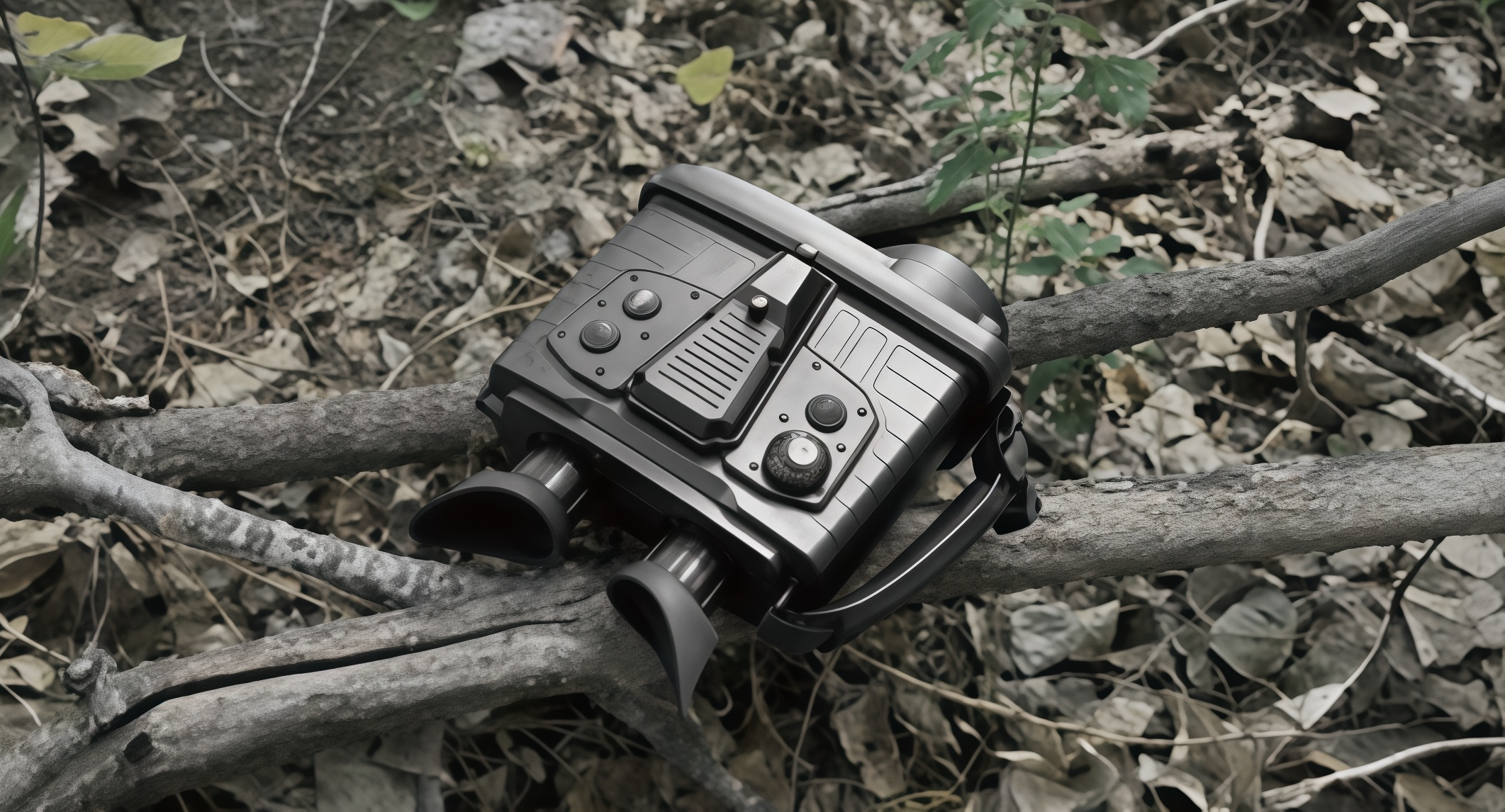

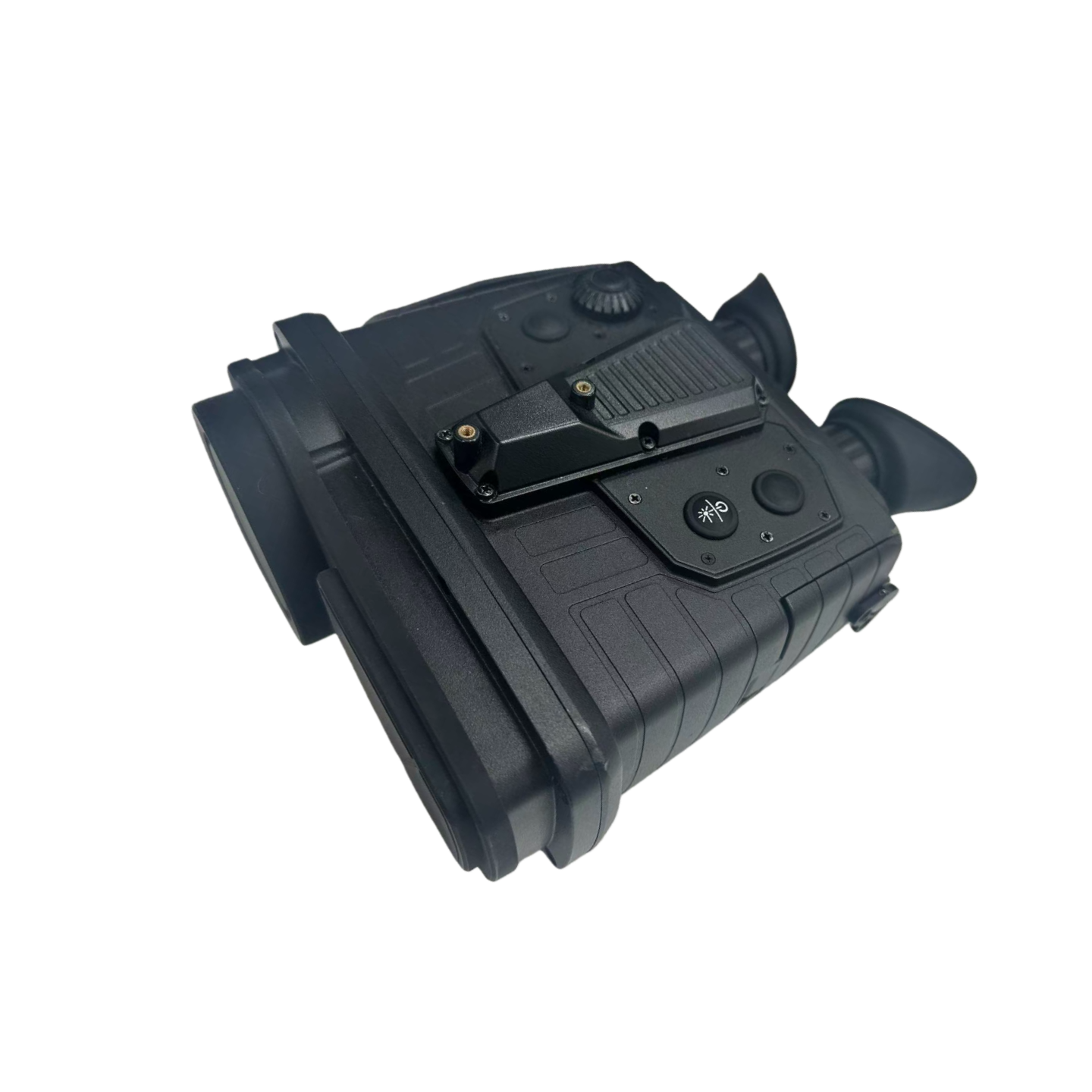

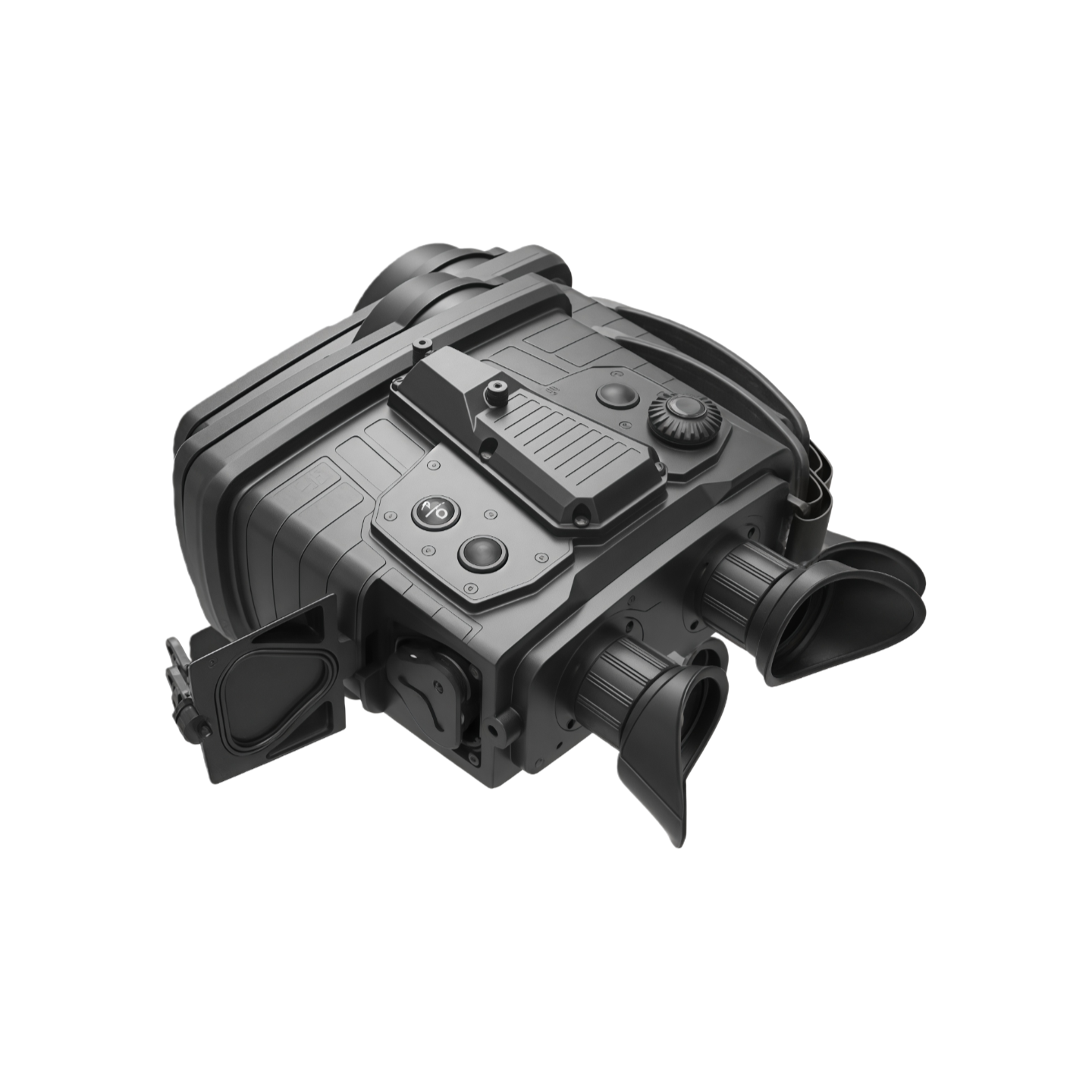

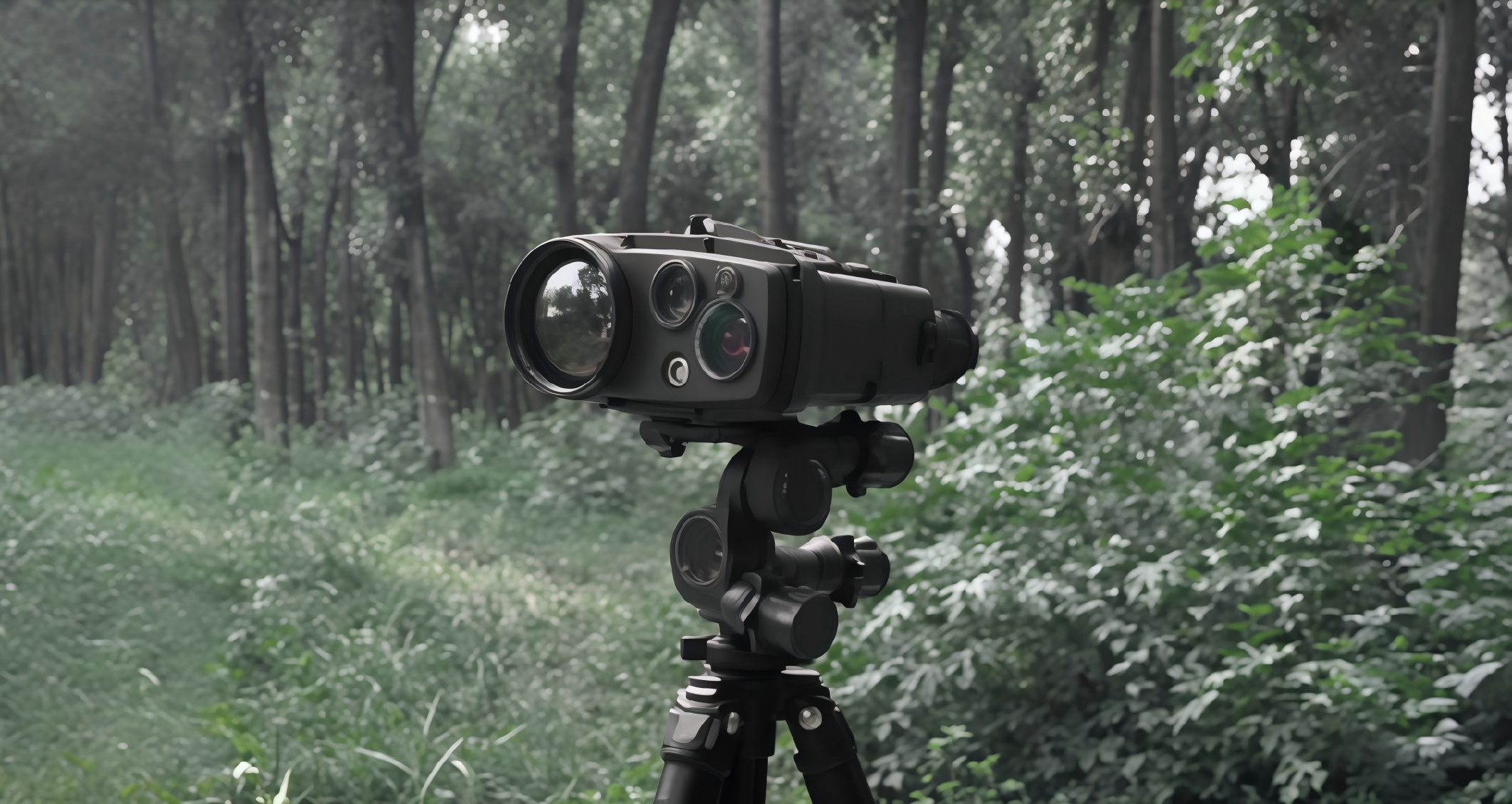

This product is a long-range tri-optical telescope with infrared thermal imaging, visible light, and laser ranging capabilities.
This product is a binocular handheld uncooled thermal imaging observation instrument with functions such a slight,infrared,laser ranging,and target positioning. lt integrates a 640×512@12um high-definition thermal imager and a 2K daylight camera to meet the needs of users for day and night use,clearly restore the real scene and not miss any suspicious targets.With the built-in satellite positioning module,laser ranging module,electronic compass,etc.,it can achieve self-positioning and target positioning.
In the visible light mode of this product, it can identify objects at a distance of>6.6 km(medium-sized trucks) and >3 km (humans). In the infrared mode,it can identify objects at a distance of>2.8 km(medium-sized trucks) and >1 km (humans).
Therefore, this product is particularly suitable for field observation, surveillance and other work scenes,and obtains target geographic location data.And special functions such as target identification and search guidance.
| Infrared detection distance |
Mid-Size Vehicle:>2.8km, Standing Man:>1km |
|---|---|
| Visible light detection distance |
Mid-Size Vehicle:>6.6km, Standing Man:>3km |
| Laser ranging range |
Minimum ≤50m ; |
| Laser ranging precision |
≤2m |
| Laser wavelength |
Eye-safe band |
| Eyepiece diopter adjustment range |
-4SD~+4SD |
| Infrared FOV |
≥6°x4.5°（Resolution: 640×512@12um） |
| Visible FOV |
≥3°x2.2° (Resolution: 1920×1080 @2.7um) |
| Focus range |
50m~∞ |
| Visible light through fog per-formance |
Visible light has the function of fog penetration, when the visibility is ≤ 4km, the fog transmission ratio is >1.5 |
| GPS positioning accuracy |
≤7m(CEP)，≤10m(PE) |
| Target positioning accuracy |
When the observation distance is 2km, the target positioning accuracy is ≤ 20m (CEP) |
| Host weight |
≤1.6kg（Includes battery） |
| Continuous working time (room temperature) |
≥10h |
| Storage temperature |
-55℃~+70°C |
| Operating temperature |
-40°C~+55℃C |
