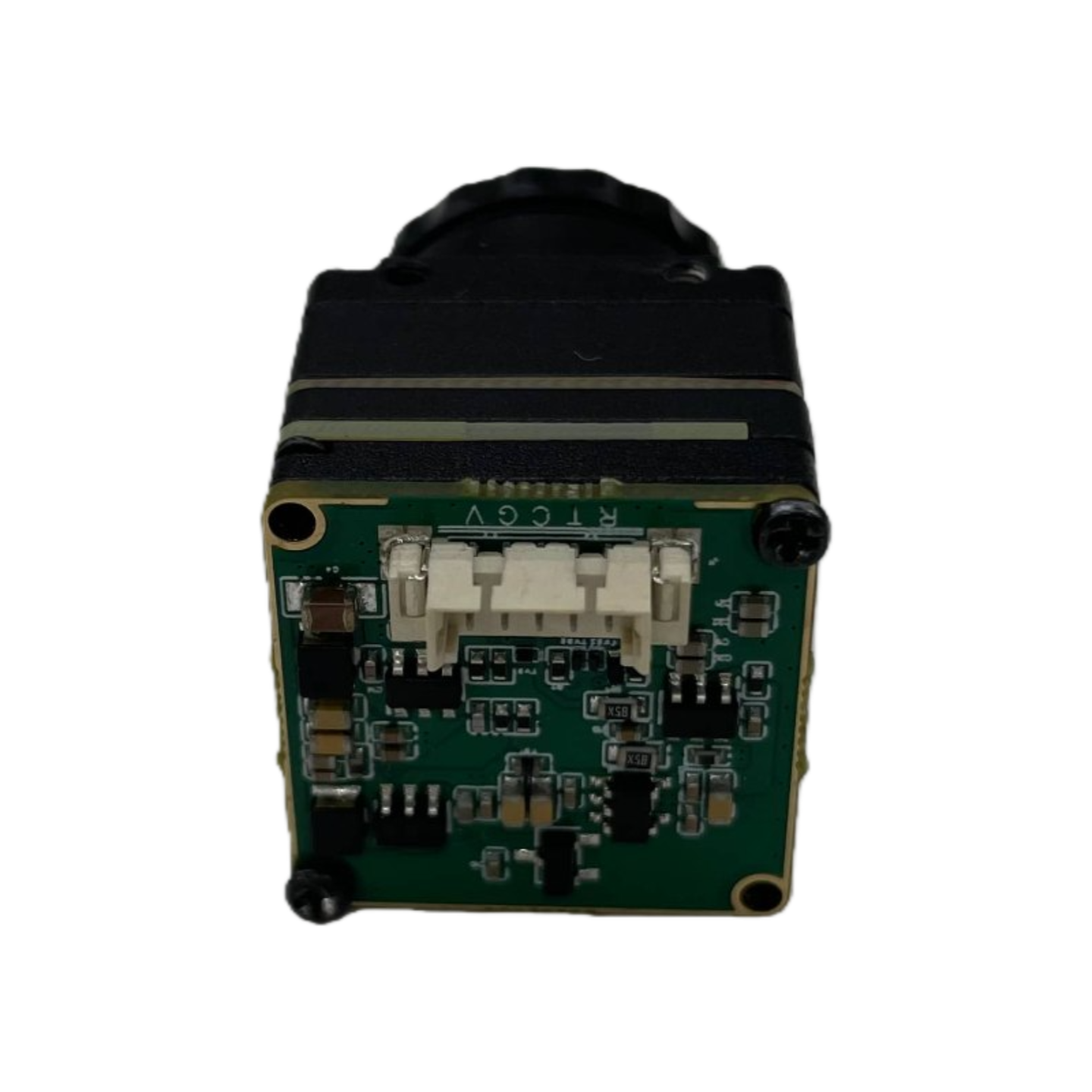

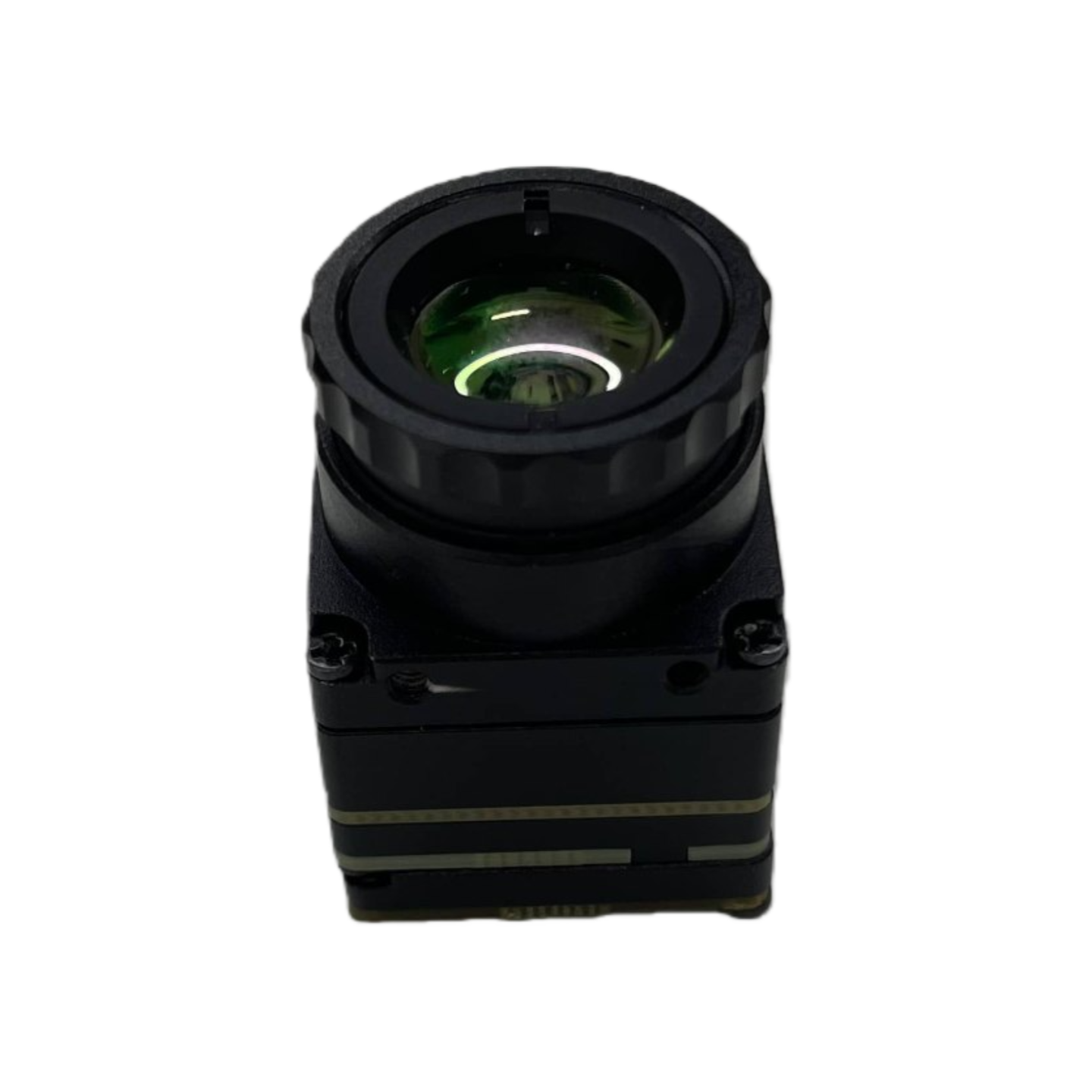

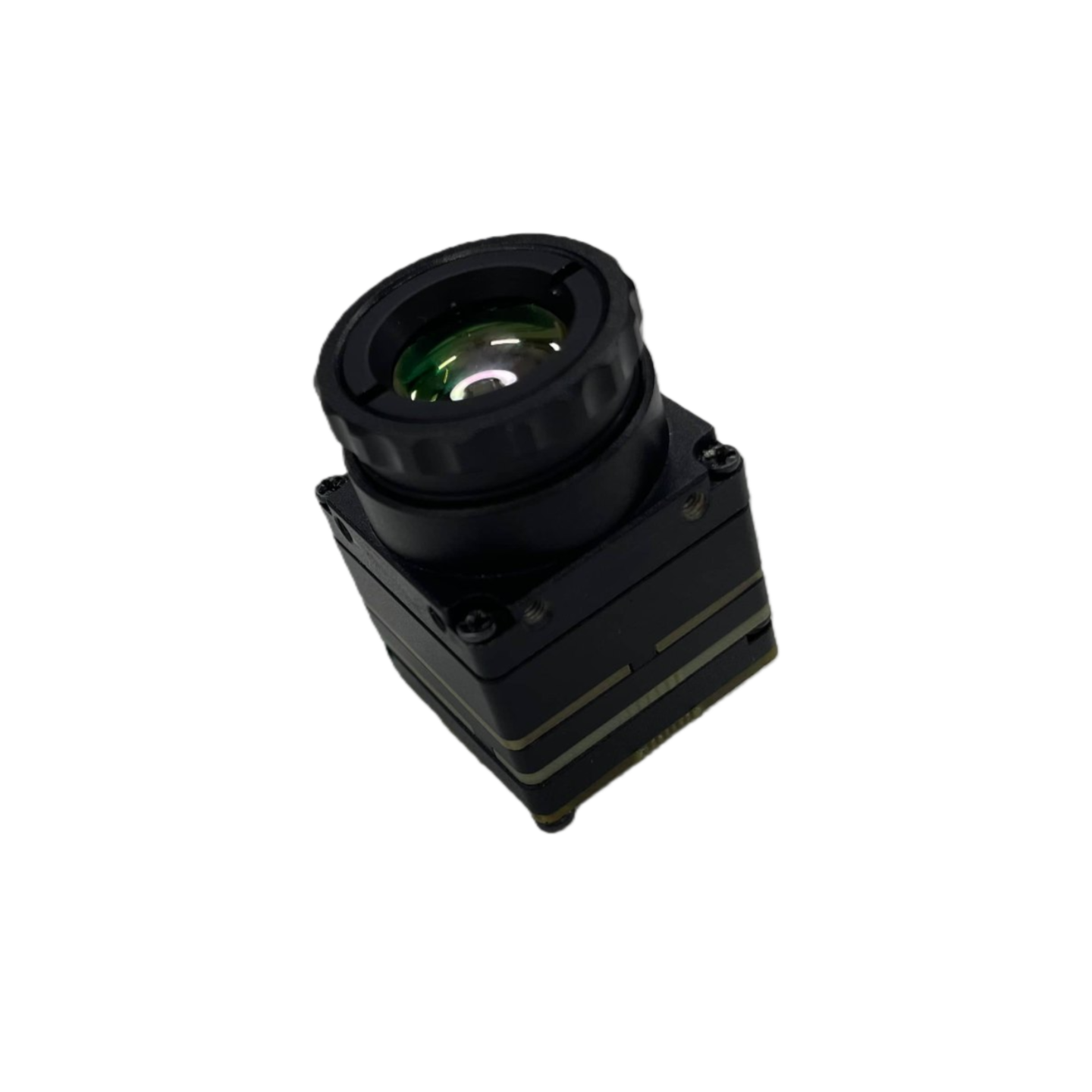

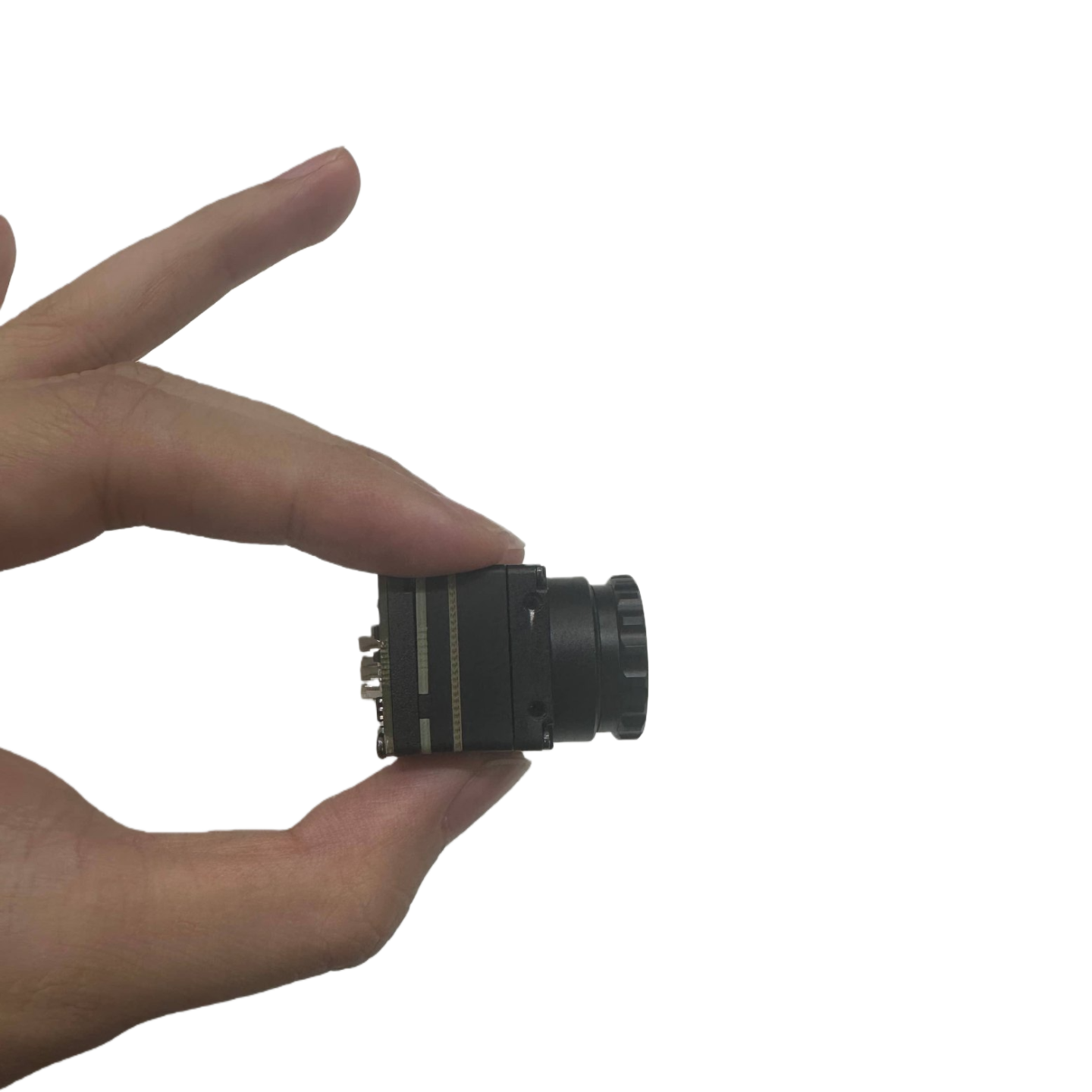

Thermal imaging module
$415.00
Military-grade infrared thermal-imaging module. Available in multiple resolutions and supports varous interfaces,such as USB, CVBS, MIPl, HDMl, Camera Link,etc.
Provides infrared-imaging solutions for drones,astronomical telescopes, soldier monoculars, helmet-mounted night-vision devices,infrared driver-assistance systems,weapon sights,and other applications.
Supports with the following lenses :4mm /6.8mm /9.1mm /9.7mm /10mm /13mm /17mm /20 mm /25mm /35 mm /48mm /50mm /55 mm /75mm /100 mm /150 mm.
Applicable scenarios:hunting,wildlife conservation monitoring, disaster relief,military security operations,and more.
| Sensor type |
Uncooled vanadium-oxide (VOx) microbolometer focal- plane array detector |
|---|---|
| Resolution |
640*512 |
| Pixel pitch |
12um |
| Frame rate |
50Hz |
| Spectral band |
8um~14um |
| Aperture |
F1.0 |
| FOV |
51.4 x 41.1° |
| Dimensions(without lens) |
17.3 mm x 17.3 mm x 10.5 mm |
| Net weight (without lens) |
5g |
| Brightness / Contrast / Sharpness adjustment |
Support |
| Gain control |
Automatic/Manual |
| Noise reduction |
2D and 3D denoising |
| Image orientation |
Flip and mirror supported |
| Pseudo- color palettes(18 modes) |
White- hot, Black- hot, Fusion, Rainbow, Golden-Autumn, Midday- Sun, Iron-Red, Amber, Jade-Stone, Sunset, lce- Fire, Oi-Painting, etc.. all adiustable |
| Crosshair overlay |
Show / Hide |
| Advanced processing |
Non-uniformity correction (NUC), digital filtering, detail enhancement |
